SY100ELT22L - 3.3V DUAL TTL-to-DIFFERENTIAL PECL TRANSLATOR

Datasheet Summary

Description

The SY89222L is a dual TTL-to-differential LVPECL translator with a +3.3V power supply.

Because LVPECL (Positive ECL) levels are used, only +3.3V and ground are required.

Features

s 3.3V power supply s 300ps typical propagation delay s.

Micrel Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	SY100ELT22L
Manufacturer	Micrel Semiconductor
File Size	41.31 KB
Description	3.3V DUAL TTL-to-DIFFERENTIAL PECL TRANSLATOR
Datasheet	SY100ELT22L Datasheet
Additional preview pages of the SY100ELT22L datasheet.

📁 Similar Datasheet

SY100ELT22L - 3.3V Dual LVTTL-to-Differential LVPECL Translator (Microchip)
SY100ELT22 - Dual TTL-to-Differential PECL Translator (Microchip)
SY100ELT21L - 3.3V Differential LVPECL-to-LVTTL Translator (Microchip)
SY100ELT23 - DUAL DIFFERENTIAL PECL-to-TTL TRANSLATOR (Synergy)
SY100ELT23 - Dual Differential PECL-to-TTL Translator (Microchip)
SY100ELT23L - 3.3V Dual Differential LVPECL-to-LVTTL Translator (Microchip)
SY100EL11V - 5V/3.3V ECL 1:2 Differential Fanout Buffe (Microchip)
SY100EL16S - 5V VARIABLE OUTPUT SWING DIFFERENTIAL RECEIVER (Synergy)
SY100EL16V - 5V/3.3V ECL Differential Receiver (Microchip)
SY100EL16VS - 3.3V/5V Variable Output Swing Differential Receiver (Microchip)

Other Datasheets by Micrel Semiconductor

SY100ELT22 - DUAL TTL-to-DIFFERENTIAL PECL TRANSLATOR
SY100ELT20V - 5V/3.3V TTL-to-DIFFERENTIAL PECL TRANSLATOR
SY100ELT21L - 3.3V DIFFERENTIAL LVPECL-to-LVTTL TRANSLATOR
SY100ELT23 - DUAL DIFFERENTIAL PECL-to-TTL TRANSLATOR
SY100ELT23L - 3.3V DUAL DIFFERENTIAL LVPECL-to-LVTTL TRANSLATOR
SY100ELT24 - TTL-to-DIFFERENTIAL ECL TRANSLATOR
SY100ELT25 - DIFFERENTIAL ECL-to-TTL TRANSLATOR
SY100ELT982 - PECL-TO-CML TRANSLATOR

Full PDF Text Transcription

Click to expand full text

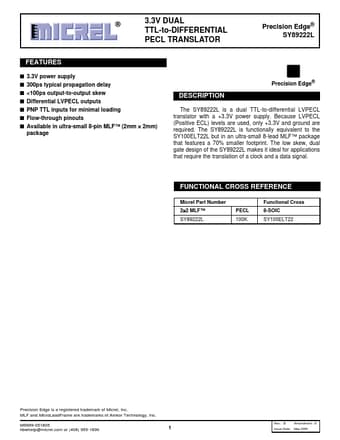

Micrel, Inc. 3.3V DUAL TTL-to-DIFFERENTIAL PECL TRANSLATOR Precision Edge® Precision ESdYg89e2®22L SY89222L FEATURES s 3.3V power supply s 300ps typical propagation delay s <100ps output-to-output skew s Differential LVPECL outputs s PNP TTL inputs for minimal loading s Flow-through pinouts s Available in ultra-small 8-pin MLF™ (2mm × 2mm) package DESCRIPTION Precision Edge® The SY89222L is a dual TTL-to-differential LVPECL translator with a +3.3V power supply. Because LVPECL (Positive ECL) levels are used, only +3.3V and ground are required. The SY89222L is functionally equivalent to the SY100ELT22L but in an ultra-small 8-lead MLF™ package that features a 70% smaller footprint.
