SY58028U

ULTRA PRECISION DIFFERENTIAL LVPECL 4:1 MUX

SY58028U Features

* United States Patent No. RE44,134

* Selects 1 of 4 differential inputs

* Provides two copies of the selected input

* Guaranteed AC performance over temperature and voltage:

* DC-to- > 10.7Gbps data rate throughput

* < 350ps IN-to-Out tpd

* < 60ps tr / tf times

SY58028U General Description

The SY58028U is a 2.5V/3.3V precision, high-speed, 4:1 differential CML multiplexer capable of handling clocks up to 7GHz and data streams up to 10.7Gbps. In addition, a 1:2 fanout buffer provides two copies of the selected inputs. The differential input includes Micrel’s unique, 3-pin input termina.

SY58028U Datasheet (175.40 KB)

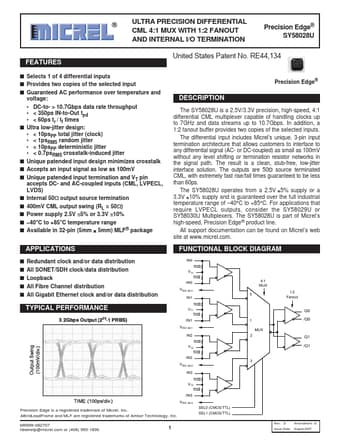

Preview of SY58028U PDF

Datasheet Details

Part number:

SY58028U

Manufacturer:

Micrel Semiconductor

File Size:

175.40 KB

Description:

Ultra precision differential lvpecl 4:1 mux.
Micrel, Inc. ULTRA PRECISION DIFFERENTIAL CML 4:1 MUX WITH 1:2 FANOUT AND INTERNAL I/O TERMINATION Precision Edge® Precision ESdY5g8e0®28U SY58028U .
