SY58029U - ULTRA PRECISION DIFFERENTIAL LVPECL 4:1 MUX

Micrel Semiconductor

The SY58029U by Micrel Semiconductor is a ULTRA PRECISION DIFFERENTIAL LVPECL 4:1 MUX. Below is the official datasheet preview.

📥 Download Datasheet

SY58029U ULTRA PRECISION DIFFERENTIAL LVPECL 4:1 MUX by Micrel Semiconductor - Datasheet Preview — Official preview page of the **SY58029U** ULTRA PRECISION DIFFERENTIAL LVPECL 4:1 MUX datasheet (Micrel Semiconductor).

Datasheet Details

Part number	SY58029U
Manufacturer	Micrel Semiconductor
File Size	223.04 KB
Description	ULTRA PRECISION DIFFERENTIAL LVPECL 4:1 MUX
Datasheet	SY58029U_MicrelSemiconductor.pdf

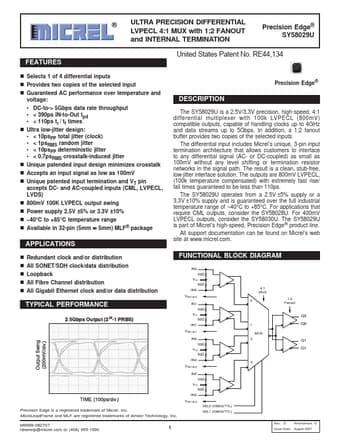

Additional preview pages of the SY58029U datasheet.

SY58029U Product details

Description

The SY58029U is a 2.5V/3.3V precision, high-speed, 4:1 differential multiplexer with 100k LVPECL (800mV) compatible outputs, capable of handling clocks up to 4GHz and data streams up to 5Gbps.

Features

United States Patent No. RE44,134.
Selects 1 of 4 differential inputs.
Provides two copies of the selected input.
Guaranteed AC performance over temperature and voltage:.
DC-to-> 5Gbps data rate throughput.
< 390ps IN-to-Out tpd.
< 110ps tr / tf times.
Ultra low-jitter design:.
< 10psPP total jitter (clock).
< 1psRMS random jitter.
< 10psPP deterministic jitter.
< 0.7psRMS crosstalk-induced jitte.
