SY58040U Datasheet - Micrel Semiconductor

ULTRA PRECISION 4x4 CML SWITCH

SY58040U Features

* Provides crosspoint switching between any input pair to any output pair

* Ultra-low jitter design:

* 67fsRMS phase jitter (typ)

* Guaranteed AC performance over temperature and voltage:

* DC to >5Gbps throughput

SY58040U General Description

The SY58040U is a low jitter, low skew, high-speed 4×4 crosspoint switch optimized for precision telecom and enterprise server/storage distribution applications. The SY58040U distributes clock frequencies from DC to 4GHz, and data rates to 5Gbps guaranteed over temperature and voltage. The SY58040U .

SY58040U Datasheet (453.28 KB)

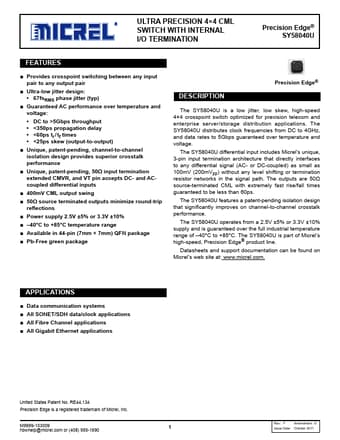

SY58040U Datasheet Preview — Preview of SY58040U PDF

Datasheet Details

Part number:

SY58040U

Manufacturer:

Micrel Semiconductor

File Size:

453.28 KB

Description:

Ultra precision 4x4 cml switch.
