SY89223L Datasheet, Translator, Micrel Semiconductor

SY89223L Features

  • Translator s s s s s s s s fMAX >160MHz 3.3V ±10% power supply <2.5ns propagation delay <300ps within-device skew Differential LVPECL inputs 24mA LVTTL outputs Industrial temperature range:
    &n

PDF File Details

Part number:

SY89223L

Manufacturer:

Micrel Semiconductor

File Size:

67.45kb

Download:

📄 Datasheet

Description:

3.3v dual differential lvpecl-to-lvttl translator. The SY89223L is a 3.3V, precision dual differential LVPECL-to-LVTTL translator. The ultra-small 8-pin MLF package and the low skew, d

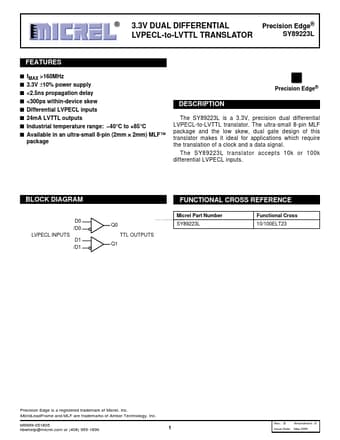

Datasheet Preview: SY89223L 📥 Download PDF (67.45kb)
Page 2 of SY89223L Page 3 of SY89223L

SY89223L Application

  • Applications which require the translation of a clock and a data signal. The SY89223L translator accepts 10k or 100k differential LVPECL inputs. BL

TAGS

SY89223L
3.3V
DUAL
DIFFERENTIAL
LVPECL-to-LVTTL
TRANSLATOR
Micrel Semiconductor
