SY89543L - DIFFERENTIAL 2:1 LVDS MULTIPLEXER

Micrel Semiconductor

The SY89543L by Micrel Semiconductor is a DIFFERENTIAL 2:1 LVDS MULTIPLEXER. Below is the official datasheet preview.

📥 Download Datasheet

SY89543L DIFFERENTIAL 2:1 LVDS MULTIPLEXER by Micrel Semiconductor - Datasheet Preview — Official preview page of the **SY89543L** DIFFERENTIAL 2:1 LVDS MULTIPLEXER datasheet (Micrel Semiconductor).

Datasheet Details

Part number	SY89543L
Manufacturer	Micrel Semiconductor
File Size	163.61 KB
Description	DIFFERENTIAL 2:1 LVDS MULTIPLEXER
Datasheet	SY89543L_MicrelSemiconductor.pdf

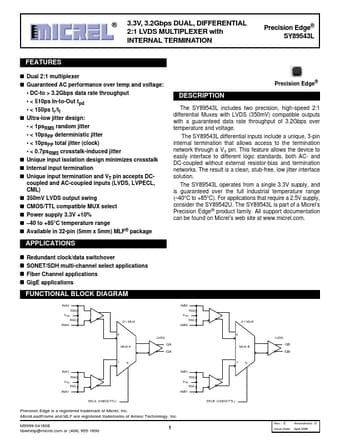

Additional preview pages of the SY89543L datasheet.

SY89543L Product details

Description

The SY89543L includes two precision, high-speed 2:1 differential Muxes with LVDS (350mV) compatible outputs with a guaranteed data rate throughput of 3.2Gbps over temperature and voltage.

Features

Dual 2:1 multiplexer Guaranteed AC performance over temp and voltage:.
DC-to > 3.2Gbps data rate throughput.
< 510ps In-to-Out tpd.
< 150ps tr/tf Ultra-low jitter design:.
< 1psRMS random jitter.
< 10psPP deterministic jitter.
< 10psPP total jitter (clock).
< 0.7psRMS crosstalk-induced jitter Unique input isolation design minimizes crosstalk Internal input termination Unique input termination and VT pin accepts DCcoupled and AC-coup.
