SY897132L 1.5Gbps Link Replicator

SY897132L Description

www.DataSheet.co.kr SY897132L 1.5Gbps Link Replicator for Fibre Channel, Gigabit Ethernet, HDTV and SATA General .
The SY897132L is a Link Replicator which provides both serial loop replication as well as serial loopback control functions.

SY897132L Features

* Serial loop replication No external components required T11 Fibre Channel compliant at 1.0625Gbps IEEE802.3z Gigabit Ethernet compliant at 1.25Gbps SMPTE-292M compliant at 1.485Gbps Operates with 3.3V ±5% Industrial temp

SY897132L Applications

* Other applications include internal/external connection routing in Host Bus Adaptors as well as hot-pluggable links between switch cards. The IN input is sent to both OUT0 and OUT1, which are enabled when OE0 and OE1 are HIGH and disabled when they are LOW. When the outputs are disabled, both diffe

📥 Download Datasheet

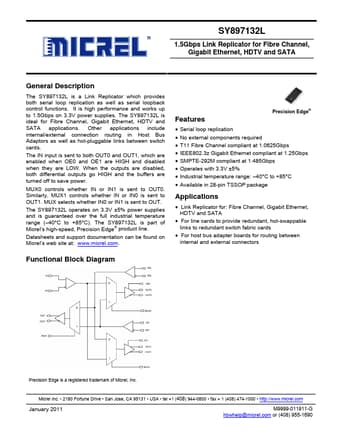

Preview of SY897132L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY897132L
Manufacturer
Micrel Semiconductor
File Size
329.25 KB
Datasheet
SY897132L_MicrelSemiconductor.pdf
Description
1.5Gbps Link Replicator
