SY89846U - LVPECL 1:5 Fanout

Micrel Semiconductor

The SY89846U by Micrel Semiconductor is a LVPECL 1:5 Fanout. Below is the official datasheet preview.

📥 Download Datasheet

SY89846U LVPECL 1:5 Fanout by Micrel Semiconductor - Datasheet Preview — Official preview page of the SY89846U LVPECL 1:5 Fanout datasheet (Micrel Semiconductor).

Datasheet Details

Part number	SY89846U
Manufacturer	Micrel Semiconductor
File Size	764.59 KB
Description	LVPECL 1:5 Fanout
Datasheet	SY89846U_MicrelSemiconductor.pdf
Additional preview pages of the SY89846U datasheet.

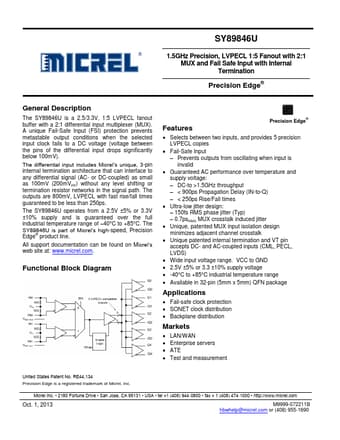

SY89846U Product details

Description

The SY89846U is a 2.5/3.3V, 1:5 LVPECL fanout buffer with a 2:1 differential input multiplexer (MUX).

Features

Precision Edge®.
Selects between two inputs, and provides 5 precision LVPECL copies.
Fail-Safe Input.
Prevents outputs from oscillating when input is invalid.
Guaranteed AC performance over temperature and supply voltage:.
DC-to >1.5GHz throughput.
< 900ps Propagation Delay (IN-to-Q).
< 250ps Rise/Fall times.
Ultra-low jitter design:.
150fs RMS phase jitter (Typ).
0.7psRMS MUX crosstalk induced jitter.
Unique, paten.
