SY89847U

LVDS 1:5 Fanout

SY89847U Features

* Precision Edge®

* Selects between two sources, and provides 5 precision LVDS copies

* Fail-Safe Input

* Prevents outputs from oscillating when input is invalid

* Guaranteed AC performance over temperature and supply voltage:

* DC-to >1.5GHz throughput

SY89847U General Description

The SY89847U is a 2.5V, 1:5 LVDS fanout buffer with a 2:1 differential input multiplexer (MUX). A unique Fail-Safe Input (FSI) protection prevents metastable output conditions when the selected input clock fails to a DC voltage (voltage between the pins of the differential input drops significantly .

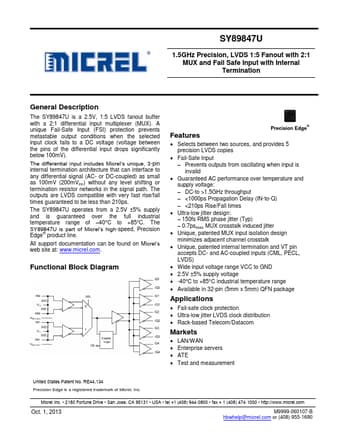

SY89847U Datasheet (800.66 KB)

Preview of SY89847U PDF

Datasheet Details

Part number:

SY89847U

Manufacturer:

Micrel Semiconductor

File Size:

800.66 KB

Description:

Lvds 1:5 fanout.
