SY898533L

Precision Differential 3.3V Low Skew LVPECL 1:4 Fanout Buffer

SY898533L Features

* Precision Edge® ∑ Provides four differential 3.3V LVPECL copies ∑ Selects between differential CLK, /CLK or LVPECL clock inputs ∑ CLK, /CLK pair

SY898533L General Description

The SY898533L is a 3.3V, low skew, 1:4 LVPECL fanout buffer with two selectable clock input pairs. Most standard differential input levels can be applied to the CLK, /CLK pair while LVPECL, CML, or SSTL input levels can be applied to the PCLK, /PCLK pair. To eliminate runt pulses on the outputs duri.

SY898533L Datasheet (475.63 KB)

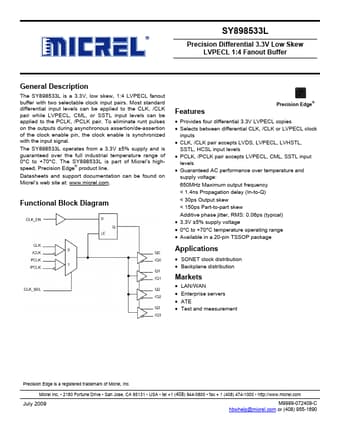

Preview of SY898533L PDF

Datasheet Details

Part number:

SY898533L

Manufacturer:

Micrel Semiconductor

File Size:

475.63 KB

Description:

Precision differential 3.3v low skew lvpecl 1:4 fanout buffer.
