MAS6179 - AM Receiver IC

MAS6179 Description

www.DataSheet4U.com DA6179.000 22 January, 2007 MAS6179 This is preliminary information on a new product under development.Micro Analog Systems Oy .
The MAS6179 AM-Receiver chip is a highly sensitive, simple to use AM receiver specially intended to receive time signals in the frequency range from 4.

MAS6179 Features

* Tri Band Receiver IC Highly Sensitive AM Receiver, 0.4 µVRMS typ. Wide Supply Voltage Range from 1.1 V to 3.6 V Very Low Power Consumption Power Down Control Fast Startup Only a Few External

MAS6179 Applications

* Multi Band Time Signal Receiver WWVB (USA), JJY (Japan), DCF77 (Germany), MSF (UK), HBG (Switzerland) and BPC (China) BLOCK DIAGRAM VDD QO3 RFIP VDD QO2 QO1 QI AON Demodulator & Comparator OUT AGC Amplifier RFIM RFI2 RFI3 Power Supply/Biasing VDD VSS PDN1 PDN2 AGC DEC 1 (10) DA6

📥 Download Datasheet

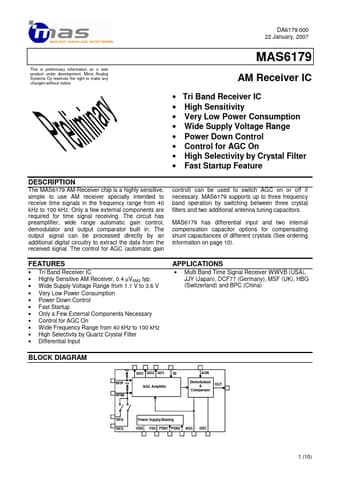

Preview of MAS6179 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAS6179
Manufacturer
Micro Analog systems
File Size
155.97 KB
Datasheet
MAS6179_MicroAnalogsystems.pdf
Description
AM Receiver IC
