MAS6512

Capacitive Sensor Signal Interface IC

Micro Analog systems

MAS6512 Features

* APPLICATIONS

* Single and Differential Capacitive Sensors

* Sensor Offset and Gain Adjustment

* Changing Capacitance Range 2pF…30pF

* Internal Offset Capacitance Matrix 0pF…22pF

* External Capacitance up to 40pF (or higher using external clock)

* Res

MAS6512 General Description

MAS6512 capacitive sensor signal Interface IC can interface both single and dual capacitance sensors. It uses a 16-bit Capacitance-to-Digital Converter (CDC), which employs a delta-sigma (∆Σ) conversion technique. The output data from the ∆Σ-modulator is processed by an on-chip decimator filter, pro.

MAS6512 Datasheet (289.07 KB)

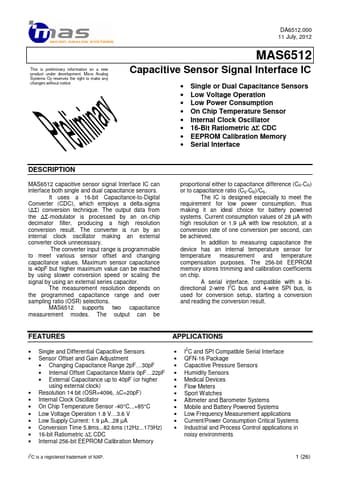

MAS6512 Datasheet Preview — Preview of MAS6512 PDF

Datasheet Details

Part number:

MAS6512

Manufacturer:

Micro Analog systems

File Size:

289.07 KB

Description:

Capacitive sensor signal interface ic.
This is preliminary information on a new product under development. Micro Analog Systems Oy reserves the right to make any changes without notice. DA.
