MAS6180, AM Receiver IC

www.DataSheet4U.com DA6180.001 27 December, 2006 MAS6180 AM Receiver IC * * * * * * * The MAS6180 AM-Receiver chip is a highly sensitive, simple to use AM receiver specially intended to receive time signals in the frequency range from 4.

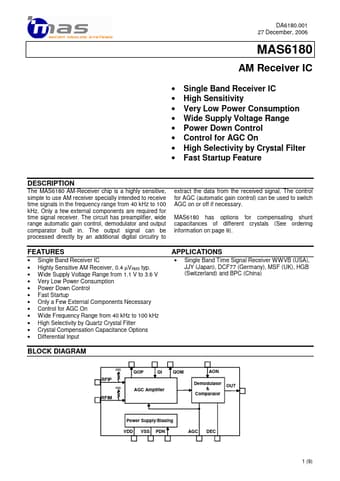

datasheet Preview Page 1 from Datasheet4u.com

MAS6180_MicroAnalogsystems.pdf

MAS6180 Datasheet Preview — Preview of MAS6180 PDF

Datasheet Details

Part number:

MAS6180

Manufacturer:

Micro Analog systems

File Size:

153.92 KB

Description:

AM Receiver IC

Features

* Single Band Receiver IC Highly Sensitive AM Receiver, 0.4 µVRMS typ. Wide Supply Voltage Range from 1.1 V to 3.6 V Very Low Power Consumption Power Down Control Fast Startup Only a

Applications

* Single Band Time Signal Receiver WWVB (USA), JJY (Japan), DCF77 (Germany), MSF (UK), HGB (Switzerland) and BPC (China) BLOCK DIAGRAM VDD QOP QI QOM AON Demodulator & Comparator OUT RFIP VDD AGC Amplifier RFIM Power Supply/Biasing VDD VSS PDN AGC DEC 1 (9) DA6180.001 27 December,
