MAS6501

16-Bit Analog-to-Digital Converter

Micro Analog systems

MAS6501 Features

* Low Standby Current Consumption 0.1 µA Typ

* Low Supply Current: 0.2 µA..1.6 µA

* Supply Voltage: 2.0 V…3.6 V

* Ratiometric ∆Σ Conversion

* Two Input Signal Ranges (VDD=2.35V): 325 mVPP , 98 mVPP

* Two Optional Offsets (VDD=2.35V): 123 mV, 33 mV

MAS6501 General Description

The MAS6501 is a 16 bit Analog-to-Digital Converter (ADC), which employs a delta-sigma (∆Σ) conversion technique. With the linear input signal range of 282 mVPP its resolution is 14 bits. The MAS6501 is designed especially to meet the requirement for low power consumption, thus making it an ideal ch.

MAS6501 Datasheet (199.93 KB)

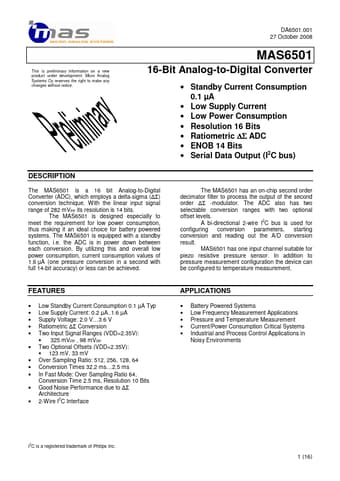

MAS6501 Datasheet Preview — Preview of MAS6501 PDF

Datasheet Details

Part number:

MAS6501

Manufacturer:

Micro Analog systems

File Size:

199.93 KB

Description:

16-bit analog-to-digital converter.
This is preliminary information on a new product under development. Micro Analog Systems Oy reserves the right to make any changes without notice. DA.
