Part number: 25LC010A
Manufacturer: Microchip (https://www.microchip.com/) Technology
File Size: 358.12KB
Download: 📄 Datasheet

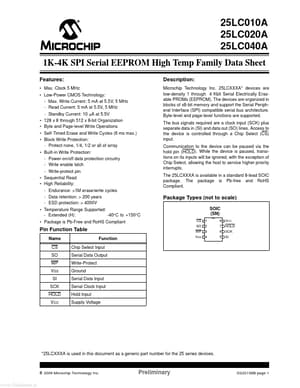

Description: (25LC0x0A) 1K-4K SPI Serial EEPROM High Temp Family Data Sheet
Part number: 25LC010A
Manufacturer: Microchip (https://www.microchip.com/) Technology
File Size: 358.12KB
Download: 📄 Datasheet
Description: (25LC0x0A) 1K-4K SPI Serial EEPROM High Temp Family Data Sheet
* Max. Clock 5 MHz
* Low-Power CMOS Technology: - Max. Write Current: 5 mA at 5.5V, 5 MHz - Read Current: 5 mA at 5.5V, 5 MHz - Standby Current: 10 μA at 5.5V
Microchip Technology Inc. 25LCXXXA* devices are low-density 1 through 4 Kbit Serial Electrically Erasable PROMs (EEPROM). The devices are organized in blocks of x8-bit memory and support the Serial Peripheral Interface (SPI) compatible serial bus ar.
