25LC080A - 8K SPI Bus Serial EEPROM

Product Overview

Microchip

Part number	25LC080A
Manufacturer	Microchip
File Size	290.08 KB
Description	8K SPI Bus Serial EEPROM
Datasheet	25LC080A Datasheet

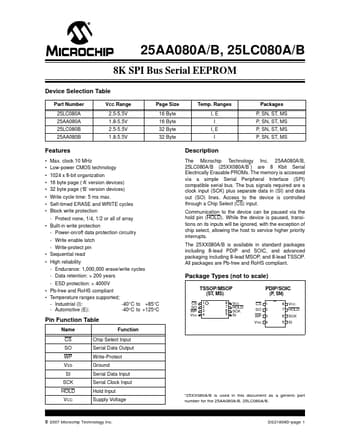

Additional preview pages of the 25LC080A datasheet.

Max. clock 10 MHz.
Low-power CMOS technology.
1024 x 8-bit organization.
16 byte page (‘A’ version devices).
32 byte page (‘B’ version devices).
Write cycle time: 5 ms max.
Self-timed ERASE and WRITE cycles.
Block write protection - Protect none, 1/4, 1/2 or all of array.
Built-in write protection - Power-on/off data protection circuitry - Write enable latch - Write-protect pin.
Sequential r.
