25LC020A - (25LC0x0A) 1K-4K SPI Serial EEPROM High Temp Family Data Sheet

Product Overview

Microchip Technology

📥 Download Datasheet

25LC020A (25LC0x0A) 1K-4K SPI Serial EEPROM High Temp Family Data Sheet by Microchip Technology - Datasheet Preview — Datasheet preview – 25LC020A

Datasheet Details

Part number	25LC020A
Manufacturer	Microchip Technology
File Size	358.12 KB
Description	(25LC0x0A) 1K-4K SPI Serial EEPROM High Temp Family Data Sheet
Datasheet	25LC020A Datasheet
Note	This datasheet PDF includes multiple part numbers: 25LC020A, 25LC040A. Please refer to the document for exact specifications by model.

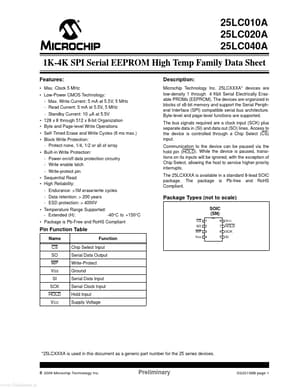

Additional preview pages of the 25LC020A datasheet.

Product details

Description

Microchip Technology Inc. devices are low-density 1 through 4 Kbit Serial Electrically Erasable PROMs (EEPROM).

Features

Max. Clock 5 MHz.
Low-Power CMOS Technology: - Max. Write Current: 5 mA at 5.5V, 5 MHz - Read Current: 5 mA at 5.5V, 5 MHz - Standby Current: 10 μA at 5.5V.
128 x 8 through 512 x 8-bit Organization.
Byte and Page-level Write Operations.
Self-Timed Erase and Write Cycles (6 ms max. ).
Block Write Protection: - Protect none, 1/4, 1/2 or all of array.
Built-in Write Protection: - Power-on/off data protection circuitry - Write enable la.
