25LC080 - 8K SPI Bus Serial EEPROM

25LC080 Description

Not recommended for new designs * Please use 25AA080A/B or 25LC080A/B.25AA080/25LC080/25C080 8K SPI Bus Serial EEPROM Device Selection Tabl.

25LC080 Features

* Low-power CMOS technology: - Write current: 3 mA maximum - Read current: 500 A typical - Standby current: 500 nA typical
* 1024 x 8-bit organization
* 16 byte page
* Write cycle time: 5 ms max.
* Self-timed erase and write cycles
* Block w

📥 Download Datasheet

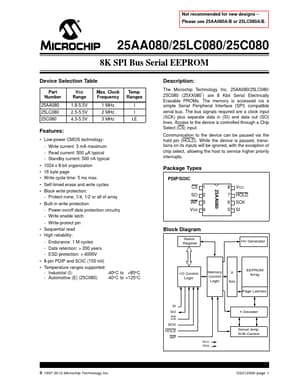

Preview of 25LC080 PDF
datasheet Preview Page 2 datasheet Preview Page 3
