HCS300 Datasheet - Microchip Technology

HCS300 KEE LOQ Code Hopping Encoder

The HCS300, from Microchip Technology Inc., is a code hopping encoder designed for secure Remote Keyless Entry (RKE) systems. The HCS300 utilizes the KEELOQ code hopping technology, which incorporates high security, a small package outline and low cost, to make this device a perfect solution for uni.

HCS300 Features

* Security

* Programmable 28-bit serial number Programmable 64-bit encryption key Each transmission is unique 66-bit transmission code length 32-bit hopping code 34-bit fixed code (28-bit serial number, 4-bit button code, 2-bit status)

HCS300_MicrochipTechnology.pdf

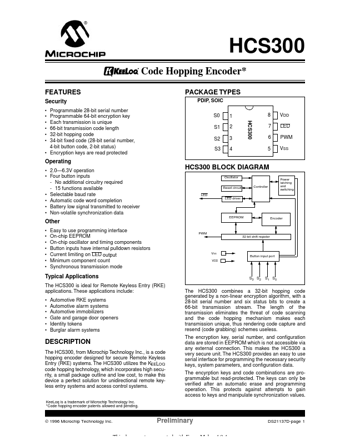

Preview of HCS300 PDF
HCS300 Datasheet Preview Page 2 HCS300 Datasheet Preview Page 3

Datasheet Details

Part number:

HCS300

Manufacturer:

Microchip ↗ Technology

File Size:

138.41 KB

Description:

Kee loq code hopping encoder.
