HCS32MS - Radiation Hardened Quad 2-Input OR Gate

DATASHEET HCS32MS Radiation Hardened Quad 2-Input OR Gate The Intersil HCS32MS is a Radiation Hardened Quad 2-Input OR Gate.

A low on both inputs forces the output to a low state.

The HCS32MS utilizes advanced CMOS/SOS technology to achieve high-speed operation.

This device is a member of the radiation hardened, high-speed, CMOS/SOS Logic Family.

The HCS32MS is supplied in a 14 Ld Ceramic flatpack (K suffix) or a SBDIP Package (D suffix).

Ordering Information PART PART TEMP.

NUMBER MARK

HCS32MS Features

* 3 Micron Radiation Hardened SOS CMOS

* Total Dose 200k RAD (Si)

* SEP Effective LET No Upsets: >100 MEV-cm2/mg

* Single Event Upset (SEU) Immunity < 2 x 10-9 Errors/Bit-Day (Typ)

* Latch-Up Free Under Any Conditions

* Military Temperature Range: -55°

HCS32MS_IntersilCorporation.pdf

Preview of HCS32MS PDF

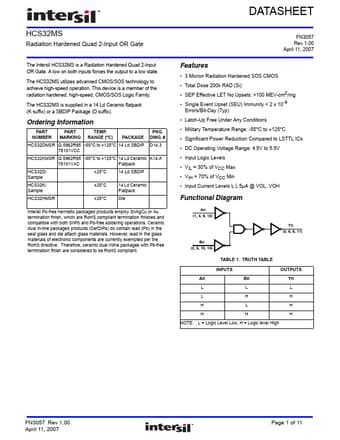

HCS32MS Datasheet Preview Page 2 HCS32MS Datasheet Preview Page 3

Datasheet Details

Part number:

HCS32MS

Manufacturer:

Intersil Corporation

File Size:

476.05 KB

Description:

Radiation hardened quad 2-input or gate.
