Radiation Hardened Octal D-Type Flip-Flop/ Three-State/ Positive Edge Triggered

HCS374MS Features

* 3 Micron Radiation Hardened SOS CMOS Total Dose 200K RAD (Si) SEP Effective LET No Upsets: >100 MEV-cm2/mg Single Event Upset (SEU) Immunity < 2 x 10-9 Errors/BitDay (Typ) Dose Rat

HCS374MS General Description

The Intersil HCS374MS is a Radiation Hardened non-inverting octal D-type, positive edge triggered ﬂip-ﬂop with three-stateable outputs. The HCS374MS utilizes advanced CMOS/SOS technology. The eight ﬂip-ﬂops enter data into their registers on the LOW-to-HIGH transition of the clock (CP). Data is also.

HCS374MS Datasheet (175.06 KB)

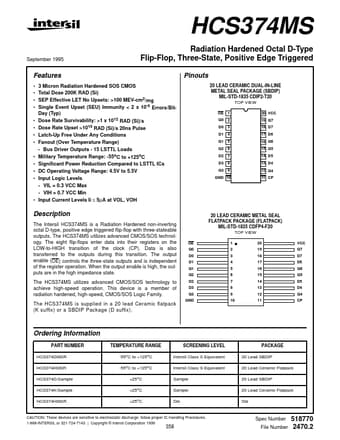

HCS374MS Datasheet Preview — Preview of HCS374MS PDF

Datasheet Details

Part number:

HCS374MS

Manufacturer:

Intersil Corporation

File Size:

175.06 KB

Description:

Radiation hardened octal d-type flip-flop/ three-state/ positive edge triggered.
HCS374MS September 1995 Radiation Hardened Octal D-Type Flip-Flop, Three-State, Positive Edge Triggered Pinouts 20 LEAD CERAMIC DUAL-IN-LINE METAL SE.
