ATA8710 Sub-GHz ASK/FSK RF Transmitter

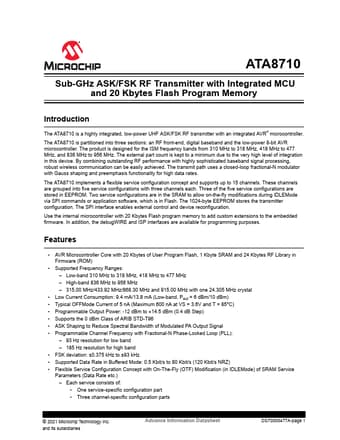

ATA8710 Sub-GHz ASK/FSK RF Transmitter with Integrated MCU and 20 Kbytes Flash Program Memory Introduction The ATA8710 is a highly integrated, low-power UHF ASK/FSK RF transmitter with an integrated AVR® microcontroller. The ATA8710 is partitioned into three sections: an RF front-end, digital baseband and the low-power 8-bit AVR microcontroller. The product is designed for the ISM frequency bands from 310 MHz to 318 MHz, 418 MHz to 477 MHz, and 836 MHz to 956 MHz. The external part count is kep.

ATA8710 Features

* AVR Microcontroller Core with 20 Kbytes of User Program Flash, 1 Kbyte SRAM and 24 Kbytes RF Library in Firmware (ROM)

* Supported Frequency Ranges:

* Low-band 310 MHz to 318 MHz, 418 MHz to 477 MHz

* High-band 836 MHz to 956 MHz

* 315.00 MHz/433.92 MHz/868.
