ATA8742 - Microcontroller

ATMEL Corporation

📥 Download Datasheet

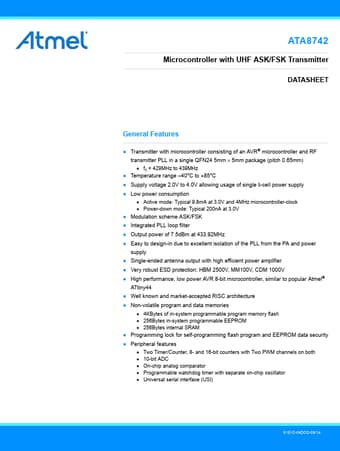

ATA8742 Datasheet Preview — Preview of ATA8742 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ATA8742
Manufacturer	ATMEL ↗ Corporation
File Size	2.79 MB
Description	Microcontroller
Datasheet	ATA8742_ATMELCorporation.pdf

ATA8742 Product details

Features

Transmitter with microcontroller consisting of an AVR® microcontroller and RF transmitter PLL in a single QFN24 5mm × 5mm package (pitch 0.65mm).
f0 = 429MHz to 439MHz.
Temperature range.
40°C to +85°C.
Supply voltage 2.0V to 4.0V allowing usage of single li-cell power supply.
Low power consumption.
Active mode: Typical 9.8mA at 3.0V and 4MHz microcontroller-clock.
Power-down mode: Typical 200nA at 3.0V.
Modulation scheme ASK/FSK.
Integrated.
