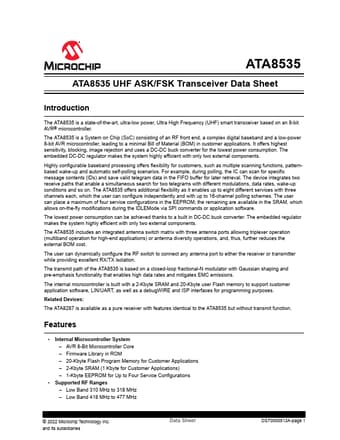

Preview of ATA8535 PDF
ATA8535 Datasheet Preview Page 2 ATA8535 Datasheet Preview Page 3

Datasheet Details

Part number:

ATA8535

Manufacturer:

Microchip ↗

File Size:

680.09 KB

Description:

Uhf ask/fsk transceiver.

ATA8535, UHF ASK/FSK Transceiver

ATA8535 ATA8535 UHF ASK/FSK Transceiver Data Sheet Introduction The ATA8535 is a state-of-the-art, ultra-low power, Ultra High Frequency (UHF) smart transceiver based on an 8-bit AVR® microcontroller.

The ATA8535 is a System on Chip (SoC) consisting of an RF front end, a complex digital baseband and a low-power 8-bit AVR microcontroller, leading to a minimal Bill of Material (BOM) in customer applications.

It offers highest sensitivity, blocking, image rejection and uses a DC-DC buck converter f

ATA8535 Features

* identical to the ATA8535 but without transmit function. Features

* Internal Microcontroller System

* AVR 8-Bit Microcontroller Core

* Firmware Library in ROM

* 20-Kbyte Flash Program Memory for Customer Applications

* 2-Kbyte SRAM (1 Kbyte for Customer Applica
