ATA8202, ATA8201 - UHF ASK/FSK Receiver

ATMEL Corporation

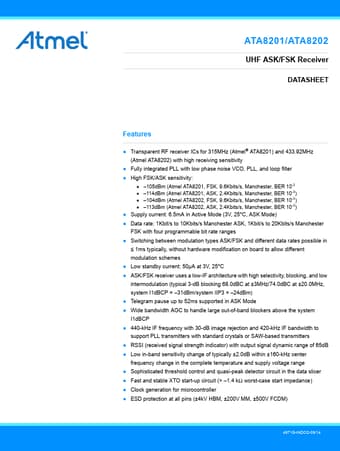

ATA8202 Datasheet Preview — This datasheet PDF includes multiple part numbers: ATA8202, ATA8201. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ATA8202, ATA8201
Manufacturer	ATMEL ↗ Corporation
File Size	700.77 KB
Description	UHF ASK/FSK Receiver
Datasheet	ATA8201_ATMELCorporation.pdf
Note	This datasheet PDF includes multiple part numbers: ATA8202, ATA8201. Please refer to the document for exact specifications by model.

ATA8202 Product details

Description

The ATA8201/ATA8202 is a UHF ASK/FSK transparent receiver IC with low power consumption supplied in a small QFN24 package (body 5 mm × 5 mm, pitch 0.65 mm).

Features

Transparent RF Receiver ICs for 315 MHz (ATA8201) and 433.92 MHz (ATA8202) With High Receiving Sensitivity.
Fully Integrated PLL With Low Phase Noise VCO, PLL, and Loop Filter.
High FSK/ASK Sensitivity:.
105 dBm (ATA8201, FSK, 9.6 Kbits/s, Manchester, BER 10-3).
114 dBm (ATA8201, ASK, 2.4 Kbits/s, Manchester, BER 10-3).
104 dBm (ATA8202, FSK, 9.6 Kbits/s, Manchester, BER 10-3).
113 dBm (ATA8202, ASK, 2.4 Kbits/s, Manchester, BER 10-3).
