ATA8402 Datasheet, Transmitter, ATMEL Corporation

ATA8402 Features

  • Transmitter
  • Integrated PLL loop filter
  • ESD protection (3kV HBM/150V MM)
  • High output power (7.5dBm) with low supply current (9.0mA)
  • Modulation scheme ASK/FSK

PDF File Details

Part number:

ATA8402

Manufacturer:

ATMEL Corporation

File Size:

273.02kb

Download:

📄 Datasheet

Description:

Uhf ask/fsk industrial transmitter.

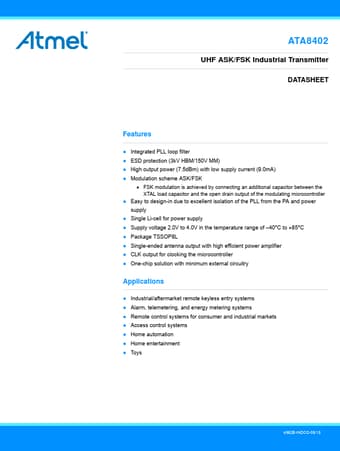

Datasheet Preview: ATA8402 📥 Download PDF (273.02kb)
Page 2 of ATA8402 Page 3 of ATA8402

ATA8402 Application

  • Applications
  • Industrial/aftermarket remote keyless entry systems
  • Alarm, telemetering, and energy metering systems
  • Remo
