ATA8405, ATA8404 - (ATA8404 / ATA8405) UHF ASK/FSK Industrial Transmitter

ATMEL Corporation

📥 Download Datasheet

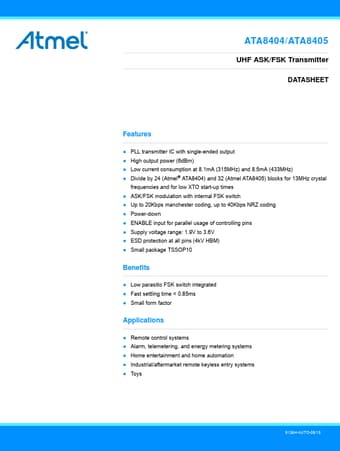

ATA8405 Datasheet Preview — This datasheet PDF includes multiple part numbers: ATA8405, ATA8404. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ATA8405, ATA8404
Manufacturer	ATMEL ↗ Corporation
File Size	386.18 KB
Description	(ATA8404 / ATA8405) UHF ASK/FSK Industrial Transmitter
Datasheet	ATA8404_ATMELCorporation.pdf
Note	This datasheet PDF includes multiple part numbers: ATA8405, ATA8404. Please refer to the document for exact specifications by model.

ATA8405 Product details

Description

The Atmel® ATA8404/ATA8405 is a PLL transmitter IC

Features

PLL transmitter IC with single-ended output.
High output power (6dBm).
Low current consumption at 8.1mA (315MHz) and 8.5mA (433MHz).
Divide by 24 (Atmel® ATA8404) and 32 (Atmel ATA8405) blocks for 13MHz crystal frequencies and for low XTO start-up times.
ASK/FSK modulation with internal FSK switch.
Up to 20Kbps manchester coding, up to 40Kbps NRZ coding.
Power-down.
ENABLE input for parallel usage of controlling pins.
Supply voltage range: 1.9V to 3.
