ATA8215, ATA8210 - UHF ASK/FSK Receiver

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ATA8215, ATA8210. Please refer to the document for exact specifications by model.

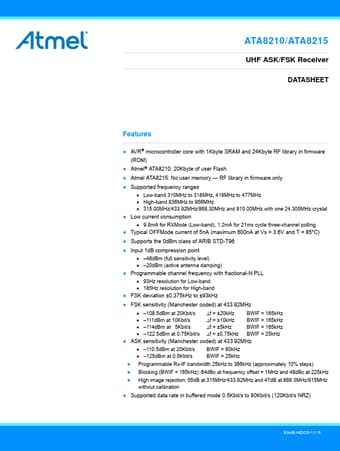

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number ATA8215, ATA8210
Manufacturer ATMEL ↗
File Size 0.97 MB
Description UHF ASK/FSK Receiver
Datasheet download datasheet ATA8210-ATMEL.pdf
Note This datasheet PDF includes multiple part numbers: ATA8215, ATA8210.
Please refer to the document for exact specifications by model.

ATA8215 Product details

Description

1.1 Introduction The Atmel® ATA8210/15 is a highly integrated, low-power UHF ASK/FSK RF receiver with an integrated AVR® microcontroller.The Atmel ATA8210/15 is partitioned into three sections; an RF front end, a digital baseband and the low-power 8-bit AVR microcontroller.The product is designed for the ISM frequency bands in the ranges of 310MHz to 318MHz, 418MHz to 477MHz and 836MHz to 956MHz.The external part count is kept to a minimum due to the very high level of integration in this de

Features
