ATA8401 Datasheet, Transmitter, ATMEL Corporation

ATA8401 Features

  • Transmitter
  • Integrated PLL loop filter
  • ESD protection (3kV HBM/150V MM)
  • High output power (8.0dBm) with low supply current (9.0mA)
  • Modulation scheme ASK/FSK

PDF File Details

Part number:

ATA8401

Manufacturer:

ATMEL Corporation

File Size:

276.89kb

Download:

📄 Datasheet

Description:

Uhf ask/fsk industrial transmitter.

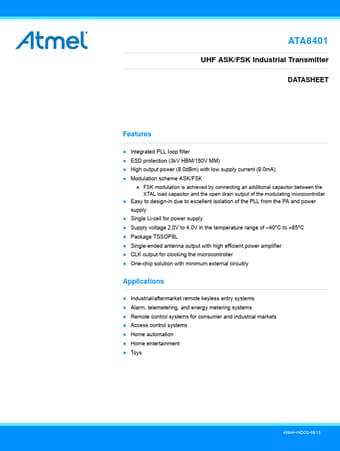

Datasheet Preview: ATA8401 📥 Download PDF (276.89kb)
Page 2 of ATA8401 Page 3 of ATA8401

ATA8401 Application

  • Applications
  • Industrial/aftermarket remote keyless entry systems
  • Alarm, telemetering, and energy metering systems
  • Remo
