ATA8515, ATA8510 - UHF ASK/FSK Transceiver

ATMEL

Datasheet Details

Part number	ATA8515, ATA8510
Manufacturer	ATMEL ↗
File Size	614.66 KB
Description	UHF ASK/FSK Transceiver
Datasheet	ATA8510-ATMEL.pdf
Note	This datasheet PDF includes multiple part numbers: ATA8515, ATA8510. Please refer to the document for exact specifications by model.

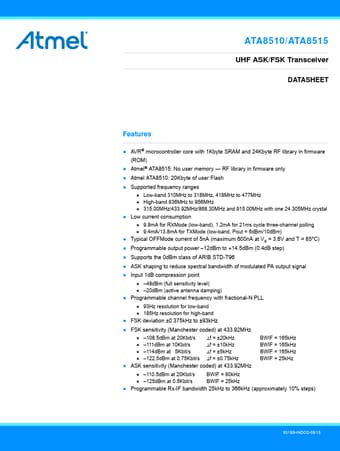

AVR® microcontroller core with 1Kbyte SRAM and 24Kbyte RF library in firmware (ROM).
Atmel® ATA8515: No user memory.
RF library in firmware only.
Atmel ATA8510: 20Kbyte of user Flash.
Supported frequency ranges.
Low-band 310MHz to 318MHz, 418MHz to 477MHz.
High-band 836MHz to 956MHz.
315.00MHz/433.92MHz/868.30MHz and 915.00MHz with one 24.305MHz crystal.
Low current consumption.
9.8mA for RXMode (low-band), 1.2mA for 21ms cycle three-.
