ATA8205, ATA8203 - (ATA8203 - ATA8205) Industrial UHF ASK/FSK Receiver

ATMEL Corporation

📥 Download Datasheet

ATA8205 Datasheet Preview — This datasheet PDF includes multiple part numbers: ATA8205, ATA8203. Please refer to the document for exact specifications by model.

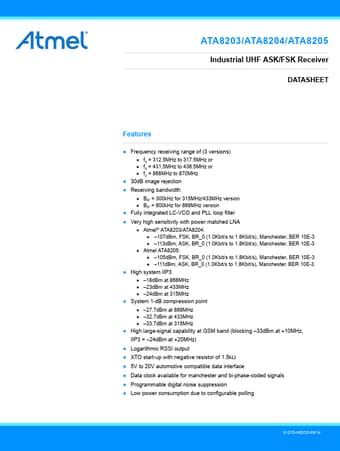

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ATA8205, ATA8203
Manufacturer	ATMEL ↗ Corporation
File Size	807.39 KB
Description	(ATA8203 - ATA8205) Industrial UHF ASK/FSK Receiver
Datasheet	ATA8203_ATMELCorporation.pdf
Note	This datasheet PDF includes multiple part numbers: ATA8205, ATA8203. Please refer to the document for exact specifications by model.

ATA8205 Product details

Features

Frequency receiving range of (3 versions).
f0 = 312.5MHz to 317.5MHz or.
f0 = 431.5MHz to 436.5MHz or.
f0 = 868MHz to 870MHz.
30dB image rejection.
Receiving bandwidth.
BIF = 300kHz for 315MHz/433MHz version.
BIF = 600kHz for 868MHz version.
Fully integrated LC-VCO and PLL loop filter.
Very high sensitivity with power matched LNA.
Atmel® ATA8203/ATA8204:.
107dBm, FSK, BR_0 (1.0Kbit/s to 1.8Kbit/s), Manchester, BER 10E-3.
