HV56022 Datasheet - Microchip

HV56022 Dual High Voltage Operational Amplifiers

The HV56022 is a Dual High Voltage Operational Amplifiers designed to drive haptic (piezo) actuators at 225V with 40 mA minimum source/sink current. Amplifiers are designed for a -3 dB bandwidth of 124 Hz for 225V sinusoidal waveforms driving 0.22 μF capacitive loads. In addition, the amplifiers are.

HV56022 Features

* Dual High Voltage Operational Amplifiers - Up to +225V - 40 mA Minimum Peak Output Sink/Source Current - Output Voltage Comparators for Short Circuit Detection - 124 Hz, -3 dB Bandwidth with 0.22 μF Load Applications

* Haptic Drivers

* Power Amplifiers Related Devices

HV56022 Datasheet (559.99 KB)

Preview of HV56022 PDF

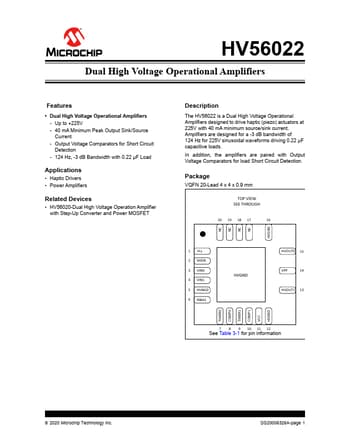

HV56022 Datasheet Preview Page 2 HV56022 Datasheet Preview Page 3

Datasheet Details

Part number:

HV56022

Manufacturer:

Microchip ↗

File Size:

559.99 KB

Description:

Dual high voltage operational amplifiers.
