HV500

32-Channel AC Plasma Display Driver

HV500 Features

* o Processed with HVCMOS® Technology o Output voltage of up to 100V o CMOS push-pull output buffers o Low-power level shifting o Source/sink current minimum of 15mA o Shift register speed 8MHz o CMOS compatible inputs o Output clamp diodes to Vpp and GND o Direct replacement for the SN75500 and SN555

HV500 Datasheet (206.63 KB)

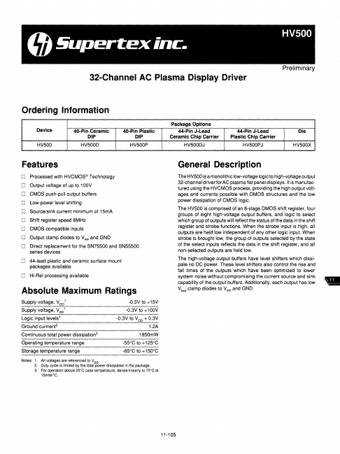

Preview of HV500 PDF

Datasheet Details

Part number:

HV500

Manufacturer:

Supertex

File Size:

206.63 KB

Description:

32-channel ac plasma display driver.
"~-"
*upertex inc. 32-Channel AC Plasma Display Driver HV500 Preliminary Ordering Information Device HV500 40-Pin Ceramic DIP HV500D 40-Pin P.
