HV508

Liquid Crystal Shutter Driver

HV508 Features

* HVCMOS® technology for high performance

* Logic-selectable output voltage

* 100nF drive capability

* Up to 90VP-P

* 25µs response time General Description The Supertex HV508 is a 45V liquid crystal shutter driver in an 8-Lead SOIC surface mount package. It

HV508 General Description

The Supertex HV508 is a 45V liquid crystal shutter driver in an 8-Lead SOIC surface mount package. It consists of two outputs that provide square waves of opposite phase. The liquid crystal shutter is connected between the two outputs. Its equivalent load can be approximated as a resistor in paralle.

HV508 Datasheet (298.49 KB)

Preview of HV508 PDF

Datasheet Details

Part number:

HV508

Manufacturer:

Supertex Inc

File Size:

298.49 KB

Description:

Liquid crystal shutter driver.

📁 Related Datasheet

HV500 32-Channel AC Plasma Display Driver (Supertex)

HV500F08 HIGH VOLTAGE DIODES (GETE ELECTRONICS)

HV500F10 HIGH VOLTAGE DIODES (GETE ELECTRONICS)

HV500F12 HIGH VOLTAGE DIODES (GETE ELECTRONICS)

HV500F15 HIGH VOLTAGE DIODES (GETE ELECTRONICS)

HV500V Ceramic Disc Capacitors (Vishay Siliconix)

HV501 32-Channel AC Plasma Display Driver (Supertex)

HV506 275V 40-Channel Row Driver with SCR Outputs (Supertex Inc)

HV507 64-Channel Serial to Parallel Converter (Supertex Inc)

HV509 16-Channel Serial to Parallel Converter (Supertex)

TAGS

HV508 Liquid Crystal Shutter Driver Supertex Inc

Image Gallery

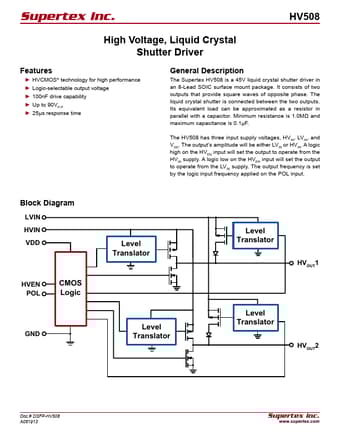

HV508 Datasheet Preview Page 2 HV508 Datasheet Preview Page 3
