HV513

8-Channel Serial to Parallel Converter

HV513 Features

* HVCMOS® technology

* Operating output voltage of 250V

* Low power level shifting from 5.0 to 250V

* Shift register speed 8.0MHz @ VDD = 5.0V

* 8 latch data outputs

* Output polarity and blanking

* Output short circuit detect

* Output

HV513 General Description

The HV513 is a low voltage serial to high voltage parallel converter with 8 high voltage push-pull outputs. This device has been designed to drive small capacitve loads such as piezoelectric transducers. It can also be used in any application requiring multiple high voltage outputs, with medium curr.

HV513 Datasheet (455.69 KB)

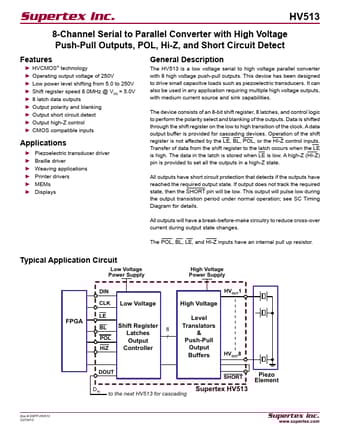

Preview of HV513 PDF

Datasheet Details

Part number:

HV513

Manufacturer:

Supertex Inc

File Size:

455.69 KB

Description:

8-channel serial to parallel converter.
