HV5122

32-Channel Serial to Parallel Converter

HV5122 Features

* Processed with HVCMOS® technology

* Output voltages to 225V using a ramped supply voltage

* SINK current minimum 100mA

* Shift register speed 8.0MHz

* Strobe and enable inputs

* CMOS compatible inputs

* Forward and reverse shifting opt

HV5122 General Description

The HV5122 is a low voltage serial to high voltage parallel converter with open drain outputs. This device has been designed for use as a driver for AC electroluminescent displays. They can also be used in any application requiring multiple output high voltage current sinking capabilities such as dr.

HV5122 Datasheet (457.72 KB)

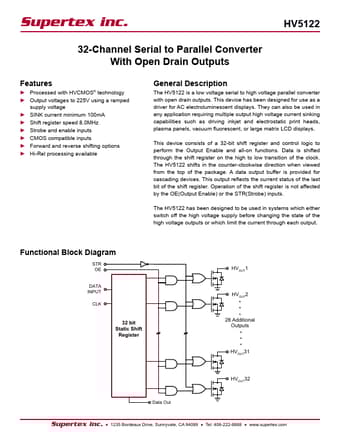

Preview of HV5122 PDF

Datasheet Details

Part number:

HV5122

Manufacturer:

Supertex Inc

File Size:

457.72 KB

Description:

32-channel serial to parallel converter.
