HV514

8-Channel Serial to Parallel Converter

HV514 Features

* HVCMOS® technology

* Operating output voltage of 250V

* Low power level shifting from 5.0 to 250V

* Shift register speed 8.0MHz @ VDD = 5.0V

* 8 latch data outputs

* Output blanking

* Programmable POL latch

* CMOS compatible inputs Applications

* Piezoelectric t

HV514 General Description

The HV514 is a low voltage serial to high voltage parallel converter with 8 high voltage push-pull outputs. This device has been designed to drive small capacitve loads such as piezoelectric transducers. It can also be used in any application requiring multiple high voltage outputs, medium current s.

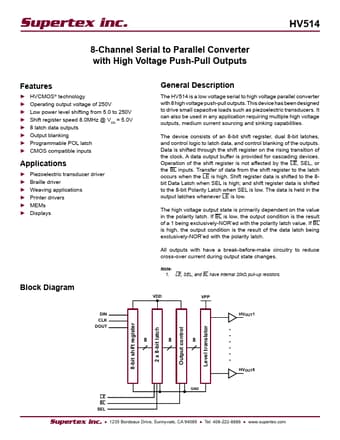

HV514 Datasheet (439.16 KB)

Preview of HV514 PDF

Datasheet Details

Part number:

HV514

Manufacturer:

Supertex

File Size:

439.16 KB

Description:

8-channel serial to parallel converter.
