HV501

32-Channel AC Plasma Display Driver

HV501 Features

* o Processed with HVCMOS® Technology o Output voltage of up to 100V o DMOS push-pull output buffers o Low-power level shifting o Source/sink current minimum of 1SmA o Shift register speed 8MHz o CMOS compatible inputs o Output clamp diodes to Vpp and GND o Direct replacement for the SN7SS01 and SNSSS

HV501 Datasheet (222.45 KB)

Preview of HV501 PDF

Datasheet Details

Part number:

HV501

Manufacturer:

Supertex

File Size:

222.45 KB

Description:

32-channel ac plasma display driver.
4 "'-11

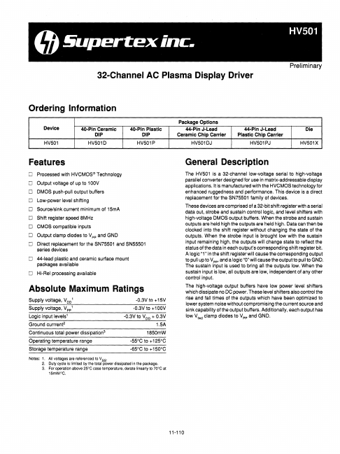

*up e r t ex inc . 32-Channel AC Plasma Display Driver HV501 Preliminary Ordering Information Device HVS01 40
*Pin. Ceramic.
