HV518

32-Channel Vacuum-Fluorescent Display Driver

Supertex Inc

HV518 Features

* 32 output lines

* 90V output swing

* Active pull-down

* Latches on all outputs

* Up to 6.0MHz @ VDD = 5.0V

* -40°C to +85°C operation Applications

* Vacuum flourescent displays

* DC plasma displays General Description The HV518 is designed for vacuum fluorescent or

HV518 General Description

The HV518 is designed for vacuum fluorescent or DC plasma applications, where it can serve as a segment, digit or matrix display driver. Each device has 32 outputs, 32 latches and a 32-bit cascadable shift register. Serial data enters the shift register on the LOW-to-HIGH transition of the clock inp.

HV518 Datasheet (426.47 KB)

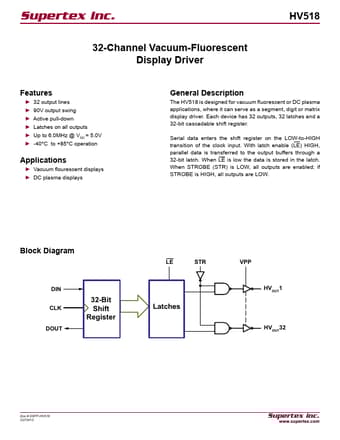

HV518 Datasheet Preview — Preview of HV518 PDF

Datasheet Details

Part number:

HV518

Manufacturer:

Supertex Inc

File Size:

426.47 KB

Description:

32-channel vacuum-fluorescent display driver.
