HV5630 Datasheet - Supertex Inc

32-Channel Serial to Parallel Converter

HV5630 Features

* Processed with HVCMOS® technology

* Sink current minimum 100mA

* Shift register speed 8.0MHz

* Polarity and Blanking inputs

* CMOS compatible inputs

* Forward and reverse shifting options

* Diode to VPP allows efficient power recovery

HV5630 General Description

The HV5630 is a low-voltage serial to high-voltage parallel converter with open drain outputs. This device has been designed for use as a driver for AC-electroluminescent displays. It can also be used in any application requiring multiple output high voltage current sinking capabilities such as driv.

HV5630 Datasheet (344.00 KB)

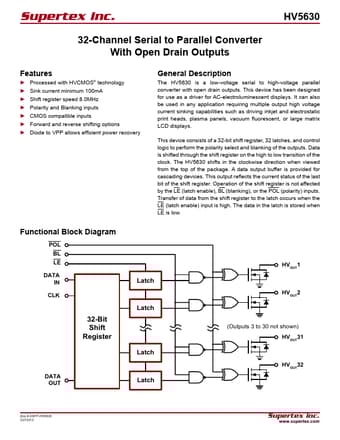

HV5630 Datasheet Preview — Preview of HV5630 PDF

Datasheet Details

Part number:

HV5630

Manufacturer:

Supertex Inc

File Size:

344.00 KB

Description:

32-channel serial to parallel converter.
