LXS101 Datasheet - Microchip

LXS101 General Purpose Schottky Diodes

General Purpose Schottky Diodes LXS100 Series Product Overview Mil spec quality Schottky barrier devices are available in economical SOT23 plastic packages. Priced for high volume commercial applications, these devices provide state of the art electrical performance. These devices are ideal for use as detectors, mixers, in up/down converters or in sampling phase detectors. The LXS series of diodes are the RoHS compliant versions of the LSS series. The LXS series superse.

LXS101 Features

* Standard SOT

* 23 package outline

* Surface mount design

* Wide selecting of values and configurations

* Available on tape and reel for automated pick and place assembly

* Excellent conversion loss

* RoHS compliant1 Package Styles Application

LXS101 Datasheet (202.84 KB)

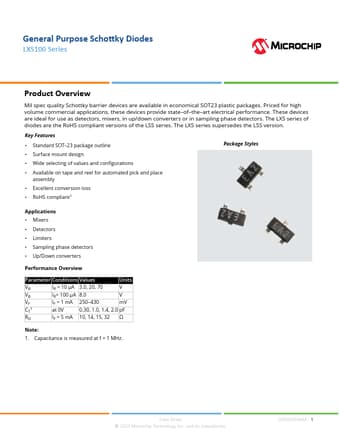

Preview of LXS101 PDF

Datasheet Details

Part number:

LXS101

Manufacturer:

Microchip ↗

File Size:

202.84 KB

Description:

General purpose schottky diodes.
