LXSR6-NPS, Current Transducer

Current Transducer LXSR series Ref: LXSR 6-NPS, LXSR 15-NPS, LXSR 25-NPS IP N = 6, 15, 25 A For the electronic measurement of current: DC, AC, pul.

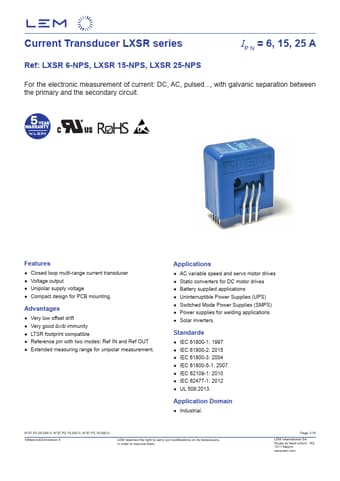

datasheet Preview Page 1 from Datasheet4u.com

LXSR6-NPS-LEM.pdf

LXSR6-NPS Datasheet Preview — Preview of LXSR6-NPS PDF

Datasheet Details

Part number:

LXSR6-NPS

Manufacturer:

LEM

File Size:

1.75 MB

Description:

Current Transducer

Features

* Closed loop multi-range current transducer
* Voltage output
* Unipolar supply voltage
* Compact design for PCB mounting. Advantages
* Very low offset drift
* Very good du/dt immunity
* LTSR footprint compatible
* Reference pin with two modes: Ref IN and Ref OUT

Applications

* AC variable speed and servo motor drives
* Static converters for DC motor drives
* Battery supplied applications
* Uninterruptible Power Supplies (UPS)
* Switched Mode Power Supplies (SMPS)
* Power supplies for welding applications
* Solar inverters. Standards
* IEC
