LXSR25-NPS, LXSR6-NPS Current Transducer

📥 Download Datasheet  Datasheet Preview Page 1

Description

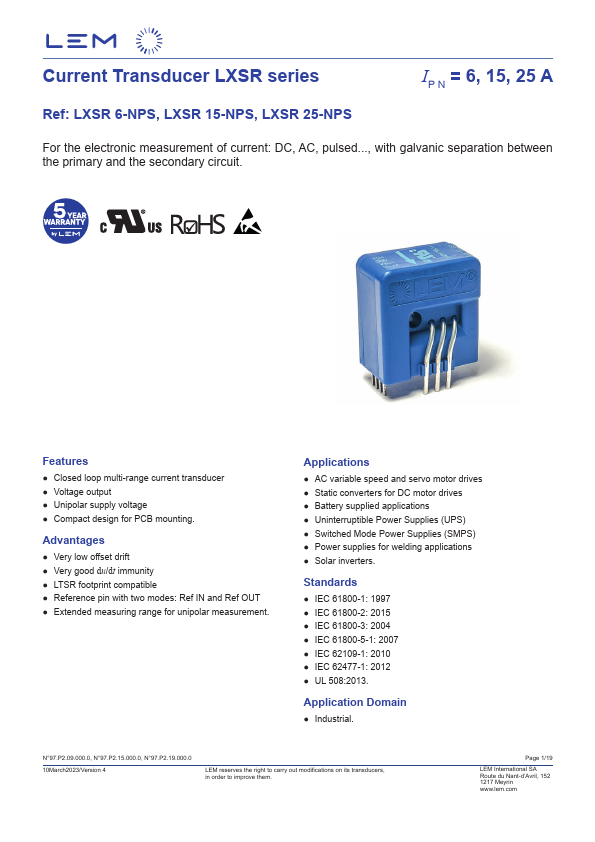

Current Transducer LXSR series Ref: LXSR 6-NPS, LXSR 15-NPS, LXSR 25-NPS IP N = 6, 15, 25 A For the electronic measurement of current: DC, AC, pul.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LXSR25-NPS, LXSR6-NPS. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LXSR25-NPS, LXSR6-NPS
Manufacturer
LEM
File Size
1.75 MB
Datasheet
LXSR6-NPS-LEM.pdf
Description
Current Transducer
Note
This datasheet PDF includes multiple part numbers: LXSR25-NPS, LXSR6-NPS.
Please refer to the document for exact specifications by model.

Features

* Closed loop multi-range current transducer
* Voltage output
* Unipolar supply voltage
* Compact design for PCB mounting. Advantages
* Very low offset drift
* Very good du/dt immunity
* LTSR footprint compatible
* Reference pin with two modes: Ref IN and Ref OUT

Applications

* AC variable speed and servo motor drives
* Static converters for DC motor drives
* Battery supplied applications
* Uninterruptible Power Supplies (UPS)
* Switched Mode Power Supplies (SMPS)
* Power supplies for welding applications
* Solar inverters. Standards
* IEC
