MIC4576

3A Buck Regulator

MIC4576 Features

* Fixed 200 kHz Operation

* 3.3V, 5V, and Adjustable Output Versions

* Voltage Over Specified Line and Load Conditions: - Fixed version: ±3% maximum output voltage - Adjustable version: ±2% maximum feedback voltage

* Guaranteed 3A Switch Current

* Wide 4V to 3

MIC4576 General Description

The MIC4576 is a series of easy-to-use fixed and adjustable BiCMOS step-down (buck) switch-mode voltage regulators. The 200 kHz MIC4576 duplicates the pinout and function of the 52 kHz LM2576. The higher switching frequency may allow up to a 2:1 reduction in output filter inductor size. The MIC4576 is.

MIC4576 Datasheet (644.78 KB)

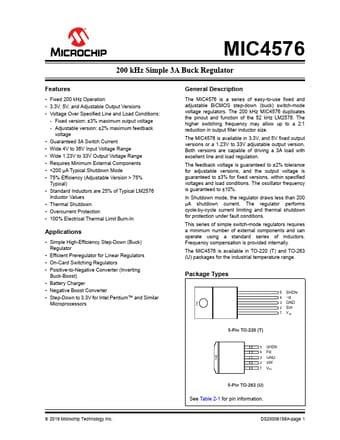

Preview of MIC4576 PDF

Datasheet Details

Part number:

MIC4576

Manufacturer:

Microchip ↗

File Size:

644.78 KB

Description:

3a buck regulator.
