VN2224 Datasheet - Microchip

N-Channel Vertical DMOS FET

VN2224 Features

* Free from Secondary Breakdown

* Low Power Drive Requirement

* Ease of Paralleling

* Low CISS and Fast Switching Speeds

* Excellent Thermal Stability

* Integral Source-Drain Diode

* High Input Impedance and High Gain Applications

* Mot

VN2224 General Description

The VN2224 Enhancement-mode (normally-off) transistor uses a vertical DMOS structure and a well-proven, silicon-gate manufacturing process. This combination produces a device with the power handling capabilities of bipolar transistors and the high input impedance and positive temperature coefficient.

VN2224 Datasheet (747.51 KB)

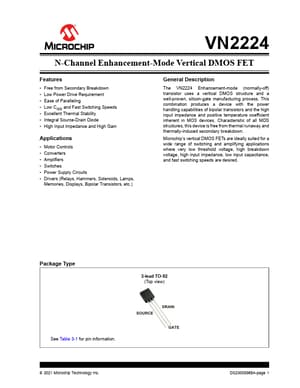

Preview of VN2224 PDF

Datasheet Details

Part number:

VN2224

Manufacturer:

Microchip ↗

File Size:

747.51 KB

Description:

N-channel vertical dmos fet.
