MT28C3224P20 - FLASH AND SRAM COMBO MEMORY

Product Overview

Micron Technology

Datasheet Details

Part number	MT28C3224P20
Manufacturer	Micron Technology
File Size	498.92 KB
Description	FLASH AND SRAM COMBO MEMORY
Datasheet	MT28C3224P20 Datasheet
Note	This datasheet PDF includes multiple part numbers: MT28C3224P20, MT28C3224P18. Please refer to the document for exact specifications by model.

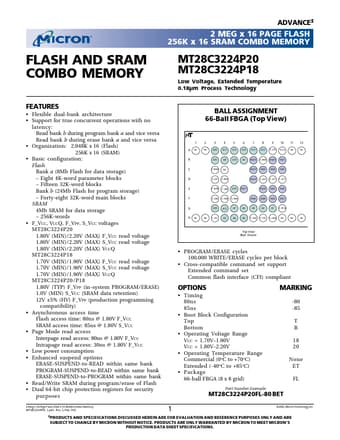

Additional preview pages of the MT28C3224P20 datasheet.

Product details

Description

The MT28C3224P20 and MT28C3224P18 combination Flash and SRAM memory devices provide a compact, low-power solution for systems where PCB real estate is at a premium.

Features

Flexible dual-bank architecture.
Support for true concurrent operations with no latency: Read bank b during program bank a and vice versa Read bank b during erase bank a and vice versa.
Organization: 2,048K x 16 (Flash) 256K x 16 (SRAM).
Basic configuration: Flash Bank a (8Mb Flash for data storage).
Eight 4K-word parameter blocks.
Fifteen 32K-word blocks Bank b (24Mb Flash for program storage).
Forty-eight 32K-word main blocks SRAM.
