MT8MTF51264HZ - 1.35V DDR3Lm SDRAM SODIMM

Name: MT8MTF51264HZ
SKU: MT8MTF51264HZ-1254396

Micron

The MT8MTF51264HZ by Micron is a 1.35V DDR3Lm SDRAM SODIMM. Below is the official datasheet preview.

Datasheet Details

Part number	MT8MTF51264HZ
Manufacturer	Micron
File Size	331.17 KB
Description	1.35V DDR3Lm SDRAM SODIMM
Datasheet	MT8MTF51264HZ-Micron.pdf

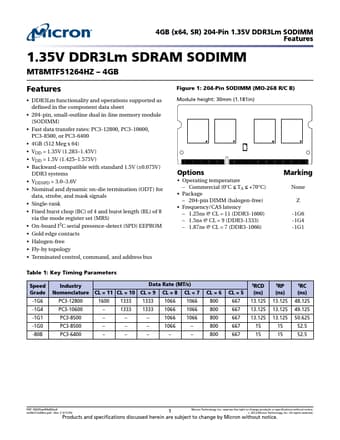

Additional preview pages of the MT8MTF51264HZ datasheet.

1.35V DDR3Lm SDRAM SODIMM MT8MTF51264HZ.
4GB Features.
DDR3Lm functionality and operations supported as defined in the component data sheet.
204-pin, small-outline dual in-line memory module (SODIMM).
Fast data transfer rates: PC3-12800, PC3-10600, PC3-8500, or PC3-6400.
4GB (512 Meg x 64).
VDD = 1.35V (1.283.
1.45V).
VDD = 1.5V (1.425.
1.575V).
Backward-compatible with standard 1.5V (±0.075V) DDR3 systems.
