ME2806 - Ultra-small package High-precision Voltage Detector

Microne

The ME2806 by Microne is a Ultra-small package High-precision Voltage Detector. Below is the official datasheet preview.

📥 Download Datasheet

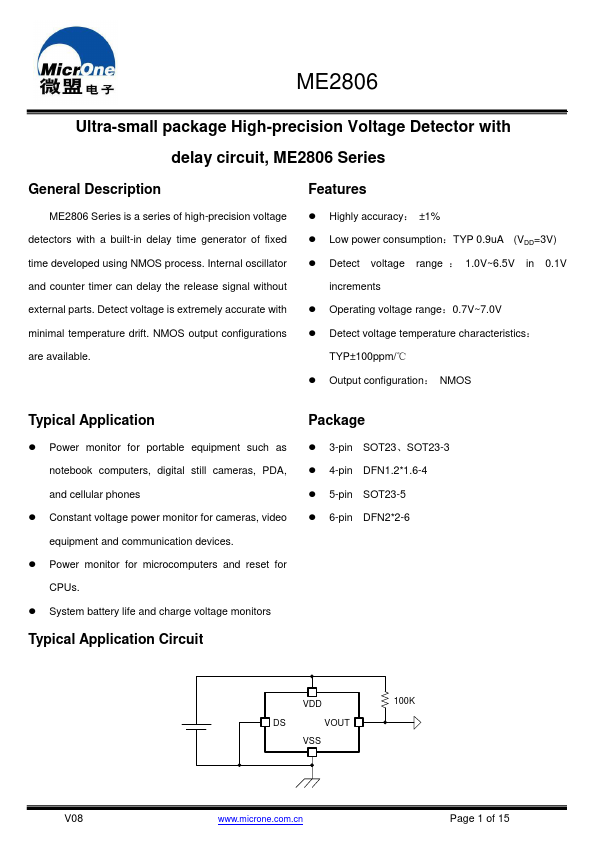

ME2806 Ultra-small package High-precision Voltage Detector by Microne - Datasheet Preview — Official preview page of the ME2806 Ultra-small package High-precision Voltage Detector datasheet (Microne).

Datasheet Details

Part number	ME2806
Manufacturer	Microne
File Size	436.34 KB
Description	Ultra-small package High-precision Voltage Detector
Datasheet	ME2806-Microne.pdf

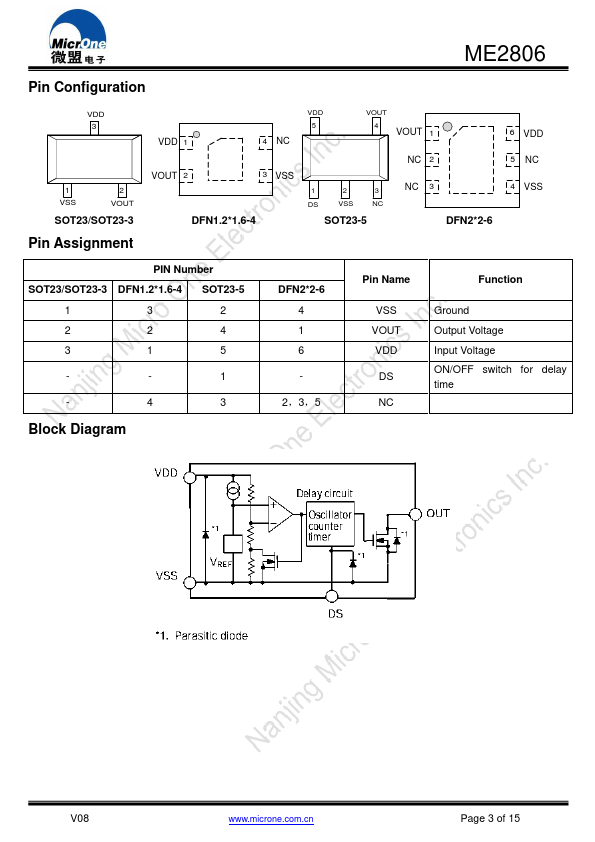

Additional preview pages of the ME2806 datasheet.

ME2806 Product details

Description

ME2806 Series is a series of high-precision voltage detectors with a built-in delay time generator of fixed time developed using NMOS process.

Features

Highly accuracy： ±1%.
Low power consumption：TYP 0.9uA (VDD=3V).
Detect voltage range ： 1.0V~6.5V in 0.1V increments.
Operating voltage range：0.7V~7.0V.
Detect voltage temperature characteristics： TYP±100ppm/℃.
Output configuration： NMOS Typical.
