ME200N04T-G, ME200N04T N-Channel MOSFET

Matsuki

Description

N- Channel 40V (D-S) MOSFET ME200N04T / ME200N04T-G GENERAL .
The ME200N04T is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

📥 Download Datasheet

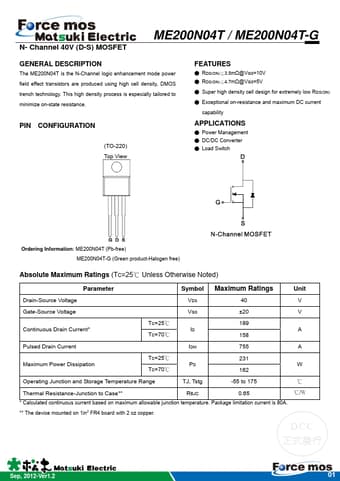

ME200N04T-G Datasheet Preview — This datasheet PDF includes multiple part numbers: ME200N04T-G, ME200N04T. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ME200N04T-G, ME200N04T
Manufacturer: Matsuki
File Size: 697.86 KB
Datasheet: ME200N04T-Matsuki.pdf
Description: N-Channel MOSFET
Note: This datasheet PDF includes multiple part numbers: ME200N04T-G, ME200N04T.
Please refer to the document for exact specifications by model.

Features

* RDS(ON)≦3.5mΩ@VGS=10V
* RDS(ON)≦4.7mΩ@VGS=5V
* Super high density cell design for extremely low RDS(ON)

Applications

* Power Management
* DC/DC Converter
* Load Switch e Ordering Information: ME200N04T (Pb-free) ME200N04T-G (Green product-Halogen free) Absolute Maximum Ratings (TC=25℃ Unless Otherwise Noted) Parameter Symbol Maximum Ratings Unit Drain-Source Voltage VDS 40 V Gate-Source Voltag
