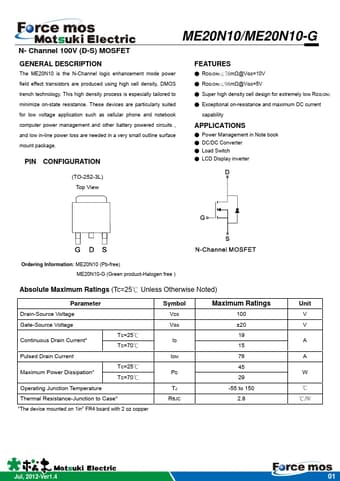

ME20N10-G Datasheet, Mosfet, Matsuki

ME20N10-G Features

• Mosfet
• RDS(ON)≦78mΩ@VGS=10V
• RDS(ON)≦98mΩ@VGS=5V
• Super high density cell design for extremely low RDS(ON)
• Exceptional on-resistance and maximum DC curren

PDF File Details

Part number:

ME20N10-G

Manufacturer:

Matsuki

File Size:

528.85kb

Download:

📄 Datasheet

Description:

N-channel 100v (d-s) mosfet. The ME20N10 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench

ME20N10-G Application

• Applications
• Power Management in Note book
• DC/DC Converter
• Load Switch
• LCD Display inverter (TO-252-3L) Top
